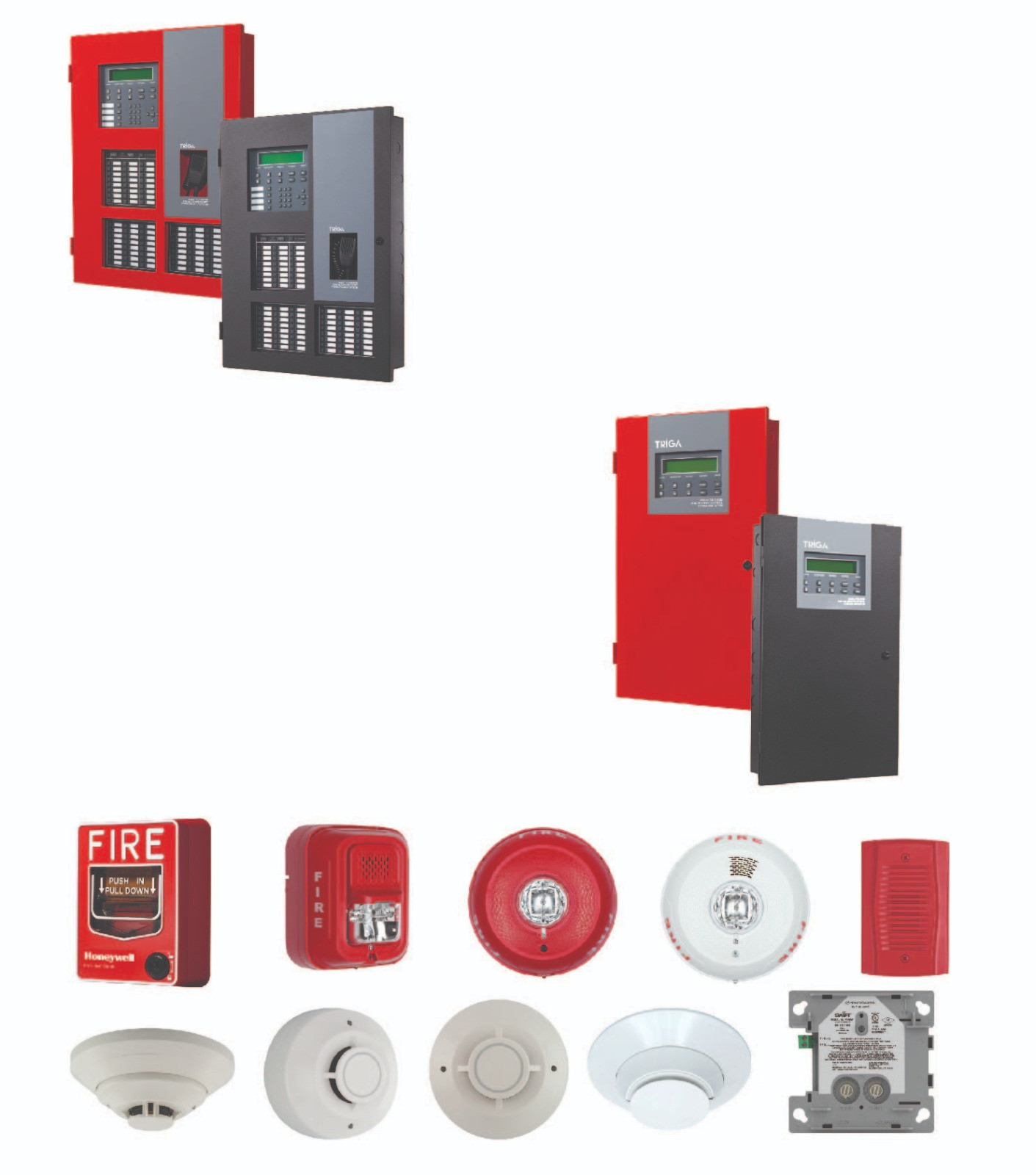

CONTROL PANEL

The TR-2100R (red) and TR-2100B (black) are intelligent analog/ addressable Fire Alarm Control Panels (FACP), which contains one built in signaling line circuit (SLC), which can support 159 sensors and 159 modules per loop. Additional SLC loops can be added using the model TR-6815 SLC expander to increase the overall point capacity to 2100 points per panel.

TR-2100R, TR-2100B, TR-R2100R & TR-R2100B has the interconnection capability for up to 32 panels. The system has two modes of operation, multiple panels covering one larger building, or multiple independent buildings. The TR-R2100R (red) or TR-R2100B (black) can be used in a networked system where at least one TR-2100R or TR-2100B is in the system without a display on the panel facia. The TR-R2100R & TR-R2100B is best with the same features of TR-2100R & TR-2100B.

• TR-R2100R/TR-R2100 B can be used in a networked system where at lease one TR 2100R/TR-2100B is in the system
• Network support for up to 32 Sites
• Built-in support for up to 159 detectors and 159 modules
• Four line LCD display with 40 characters per line
• Available in a red or black cabinet
• TR-2100R/TR-2100B or TR-R2100R/TR-R210B can be surface or flush mounted • Four programmable function keys
• Network card allows copper network connection with a multi-mode or single-mode fiber connection option
• Built-in dual phone line, digital alarm communicator/ transmitter (DACT), IP or optional cellular technologies
• JumpStart Auto Programming® feature for easy programming
• Renewable license on downloading software helps inhibit unauthorized programming
• Built in USB interface for programming
• Supports up to four wireless gateways. Each gateway can have up to 49 wireless devices
• Supports Class B (Style 4) and Class A (Style 6 or Style 7 configuration for SLC, and SBUS.

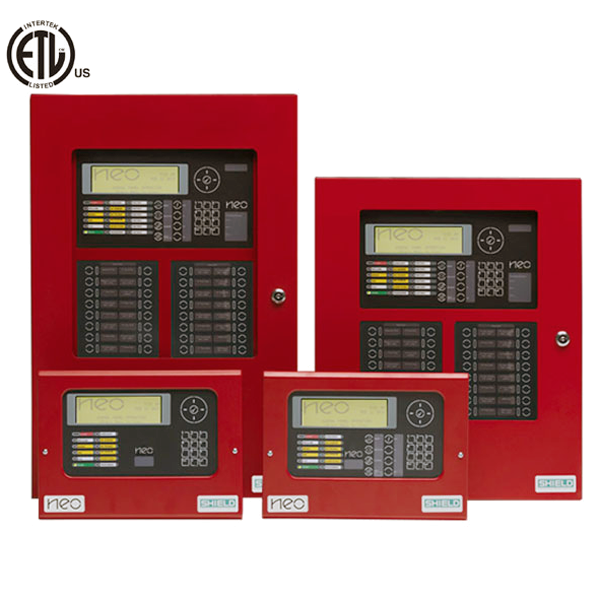

NEO SERIES-CONTROL PANEL

NEO control panels provide a unique scalable platform that can expand upwards or downwards to suit virtually any application.

NEO is the result of decades of fire alarm and detection experience gained from installations across the globe, involving architects, engineers, consultants, end users and fire authorities.

Our panels have been designed to offer more power and performance in a user friendly format. NEO packs in with more configuration, control and interface options than any comparable fire alarm panel. Multiple advanced features mean it will maintain its performance advantages for years to come.

All of the intelligent fire alarm control panels in this series consist of identical electronic modules and can be programed from a laptop PC configuration tool. Our features have been proven to sharply reduce installation time, help identify wiring and programing errors, provide local and remote system diagnostics as well as providing exceptional fire detection without nuisance alarms.

Every NEO panel features unbeatable networking capabilities making it easy to use, configure and maintain, from the smallest to the largest of sites and with complicated cause-and effect

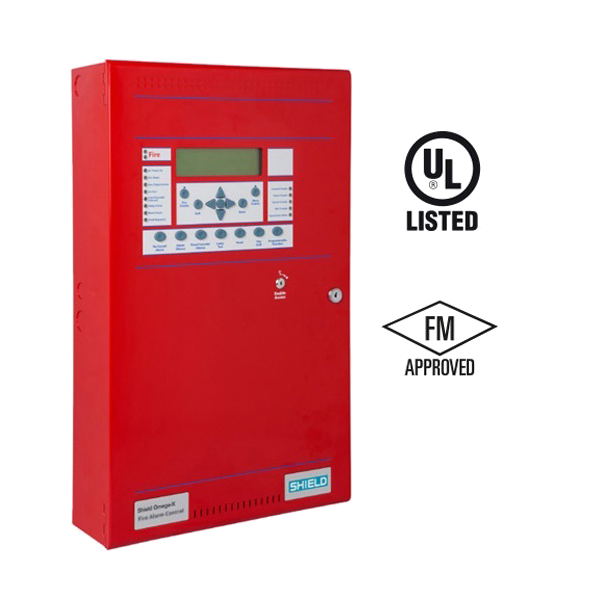

OMEGA SERIES-CONTROL PANEL

SHIELD Omega is a versatile range of open protocol fire alarm control panels compatible with existing SHIELD Omega fire alarm panel technology.

Available with one or two detection loops for a total of 250 primary points or 400 points using subpoints. SHIELD Omega uses leading edge microprocessor based electronics to provide a flexible control system with high reliability and integrity. Suitable for all small to medium sized fire detection systems, SHIELD Omega control panels can be expanded and networked to become part of much larger systems if the need arises, therefore providing a future proof solution for any installation.

With its large graphical display and ergonomic button and indicator layout, the SHIELD Omega control panel is simple and straight forward to understand for installers, commissioning engineers and end users.

Model SA-P4LR is not available now. SHIELD is manufacturing model number SA-P20R0 only. Loop Expansion Module for additional Two Loops for SA-P20R Panel, UL Listed, Model: SA-LM2

■ UL 864 9th Edition listed.

■ Multi-Loop 2 Analog Addressable Loops Field upgradable to 4.

■ 126 primary points per loop.

■ Powerful, network wide cause and effects (500 total)

■ Fully user programmable by point or zone.

■ 800 points per panel when using devices with sub-points.

■ Up to 3048 m wiring length on SLC loop.

■ 64 Panels on a network.

■ Programmable through a PC connection to the panel, or through keypad.

■ Programmable relays – 5.

■ Supervised Powered Outputs – 3.

■ 4 Programmable notification appliance

AURA SEREIS-CONTROL PANEL

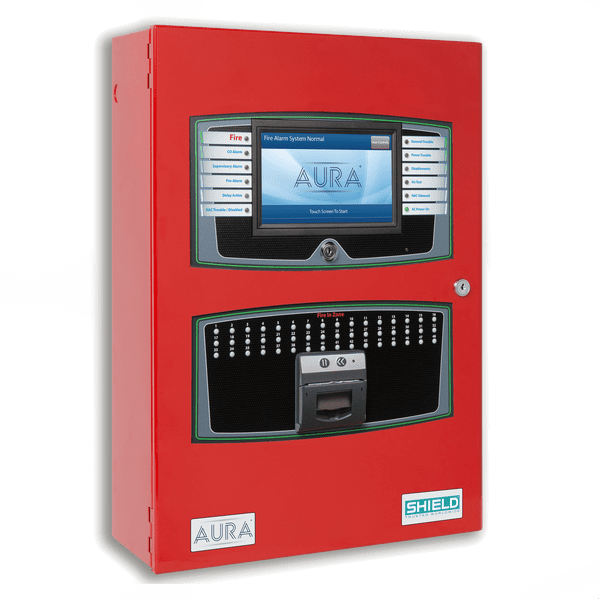

The all new Aura product range of fire alarm control equipment combines the very latest hardware and software to produce a control and indication system, which is powerful and sophisticated, yet simple to use and understand. The flexibility of the Aura platform is such that it can be re-configured to realize many other control and indication applications, with direct integration into intelligent buildings.

Moving away from the simple, price driven competitive model used by most manufacturers today, the Aura concept is designed to add value to System Designers, Integrators, Service Providers, and end users. Developed from the “ground up” and using some of the most advanced technology available, Aura is designed as one of the most powerful, intelligent, and technically robust fire alarm products available. Not only do the products and services offered under the Aura brand provide solutions to the most technically challenging applications in life safety, Aura will deliver added value, market advantage, and a competitive edge to your business.

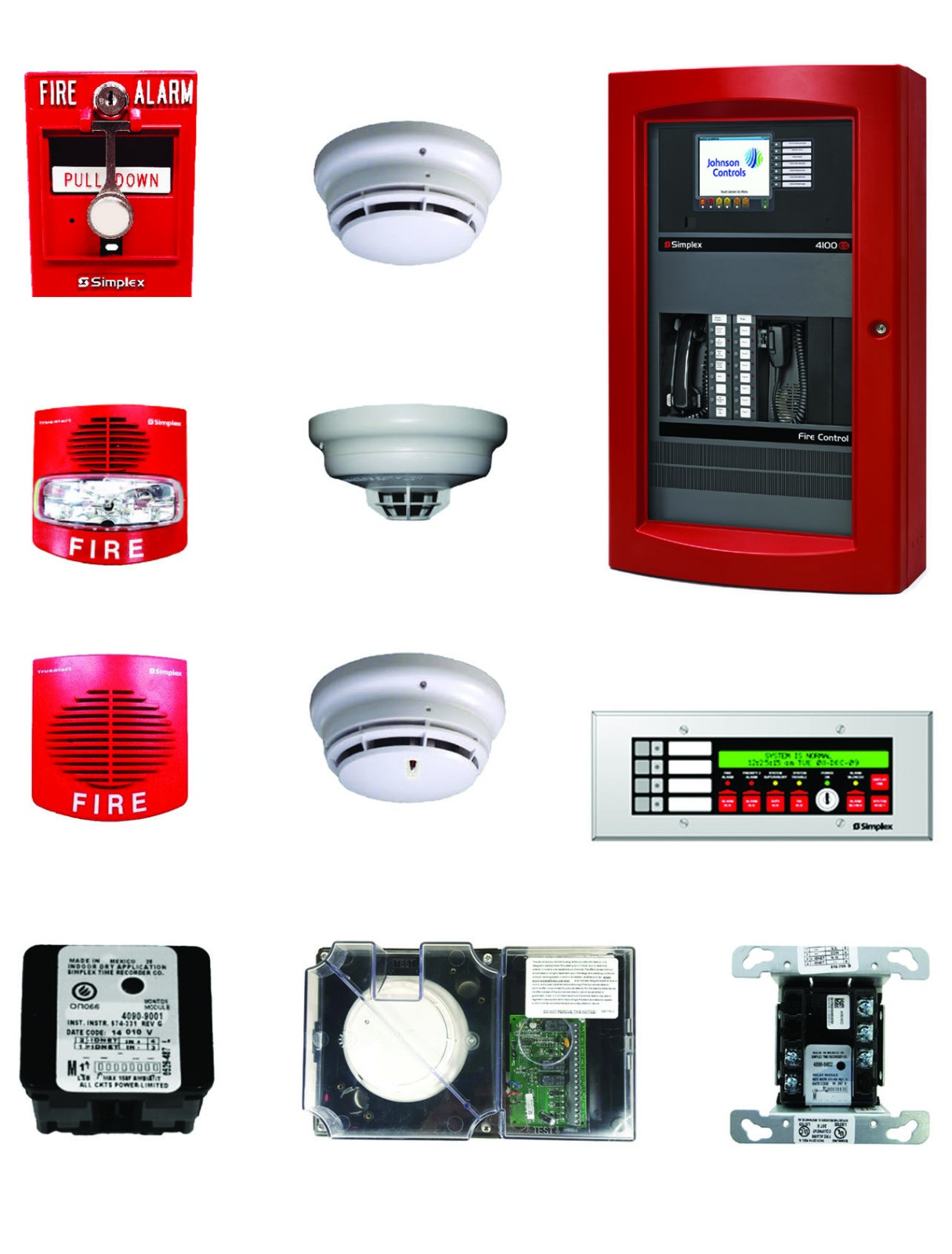

CONTROL PANEL

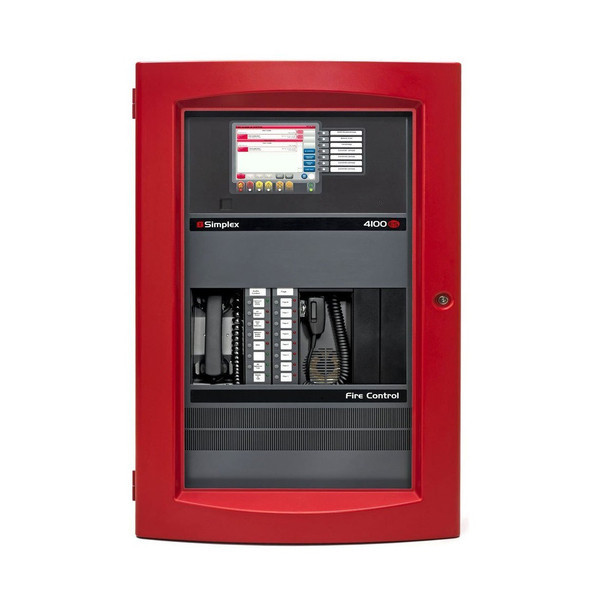

The Simplex 4100ES is designed to handle complex facility requirements with ease. It brings fully addressable technology for both initiating and notification circuits and scalable design flexibility to medium and large facilities and multi-building campus networks. Supporting up to 3,000 addressable points, the 4100ES is networkable, offers system-wide voice notification/audio capability that is UL 2572 listed for Emergency Communications purposes, and is listed for multi-hazard suppression release control. An optional, large, color touch screen display provides a wealth of information and an intuitive, easy-to-use interface.

Industry-leading technology. Simplex fire alarm control panels offer some of the most advanced technology and they are designed to meet your life safety and compliance needs. From intelligent addressability and networking capabilities to remote management and touchscreen convenience – our feature-rich panels lead the market for performance, benefits and reliability.

True addressability. Most Simplex fire alarm control panels feature addressable technology that allows you to easily manage each device on your life safety network. The benefits of addressability include lower installation and maintenance costs, the prevention of nuisance alarms, and convenient notification appliance self-testing capability.

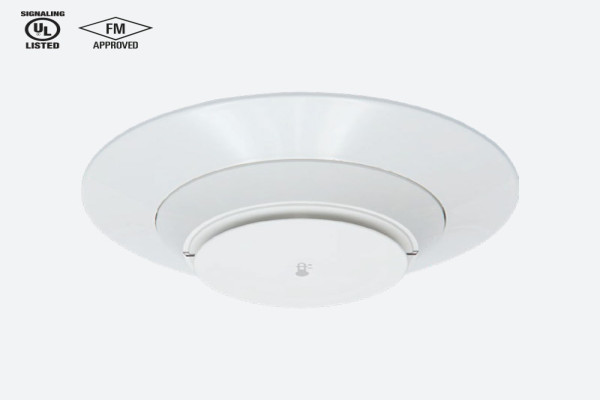

SMOKE DETECTOR

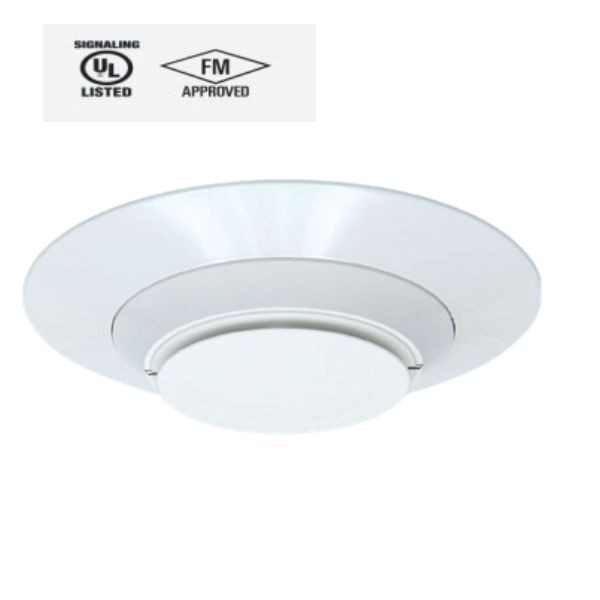

Triga’s TR-PHOTO-W Series intelligent plug-in smoke detectors are designed for both performance and aesthetics. TRIGA SMOKE DETECTOR has new modern profile for improved aesthetics. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards. TR-PHOTO-W has Stable communication technique with noise immunity.

The TR-PHOTO-W Series detector sensitivity can be programmed in the control panel software. TRIGA SMOKE DETECTOR has built-in functional test switch activated by external magnet. Sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with rotary, decimal address switches, providing exact detector location for selective maintenance when chamber contamination reaches an unacceptable level. TR-PHOTO-W plugs into separate base for ease of installation and maintenance.

Low standby current, Two-wire SLC connection, Optional remote, single- gang LED accessory, Dual LED design provides 360° viewing angle, Remote test feature from the panel- This are the common advantages of TRIGA SMOKE DETECTOR.

• Other FEATURES
  Built-in tamper-resistant feature
  Sealed against back pressure
  Expanded color options
  Optional relay, isolator, and sounder bases

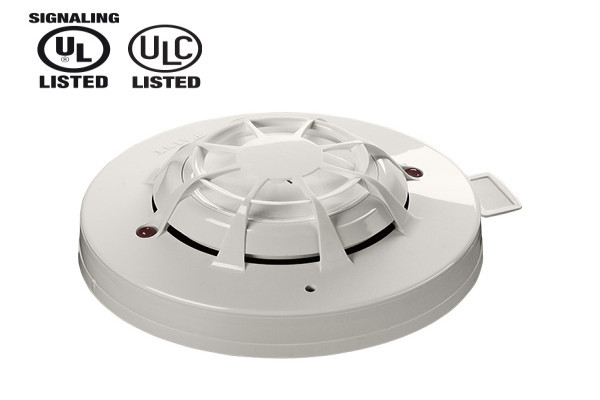

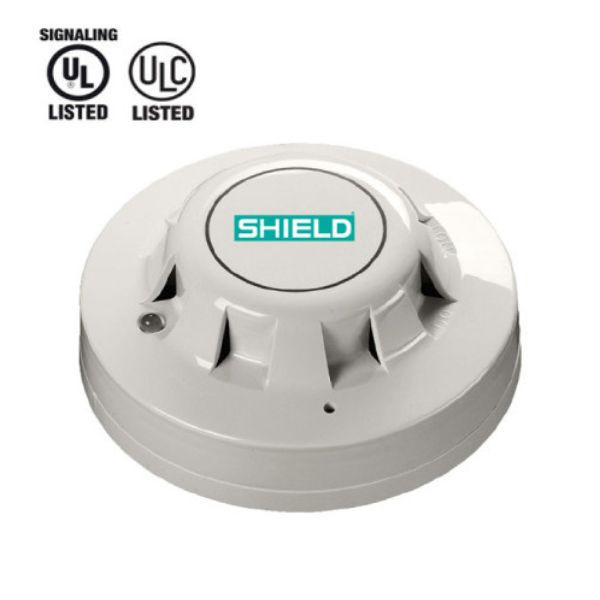

SMOKE DETECTOR

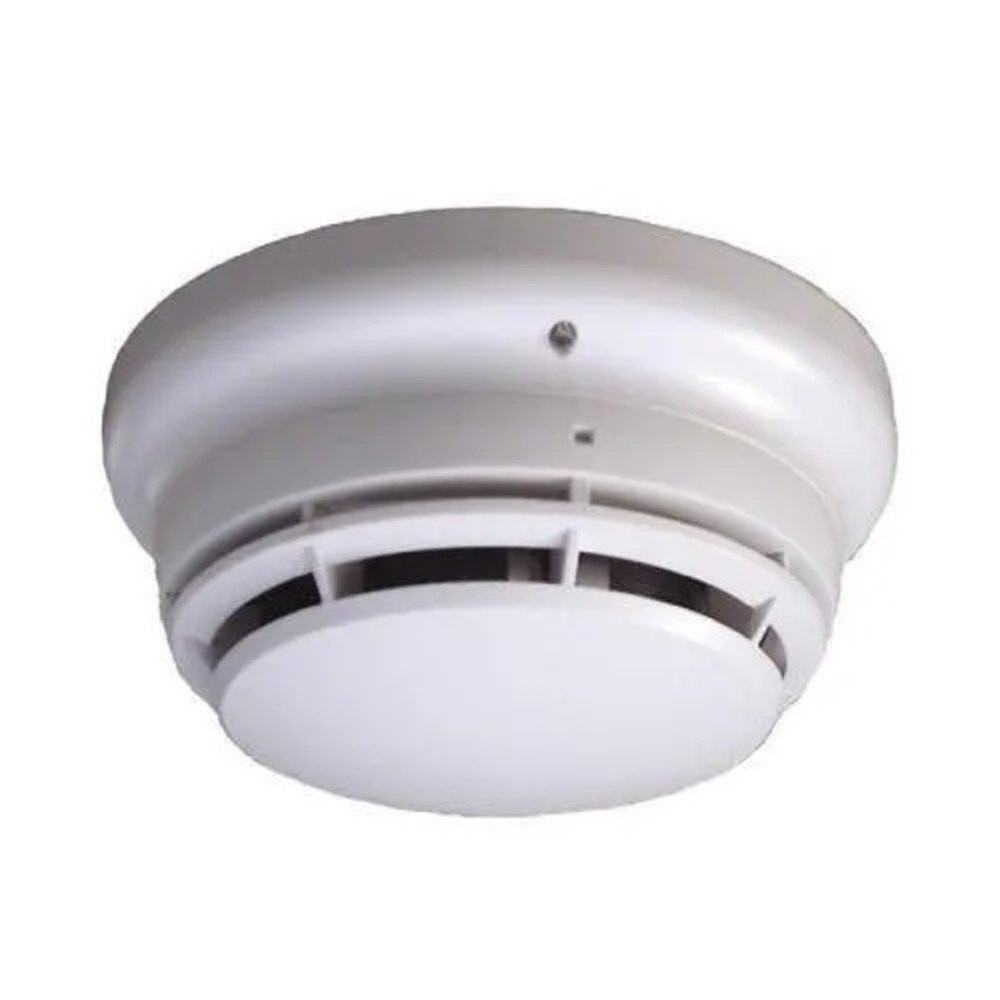

SHIELD Photo-Electric Smoke Detector incorporates a pulsing LED located within the housing of the detector. The detector housing is identical to that of the Ionization Detector but has an indicator LED which is clear in quiescent state but produces red light in alarM

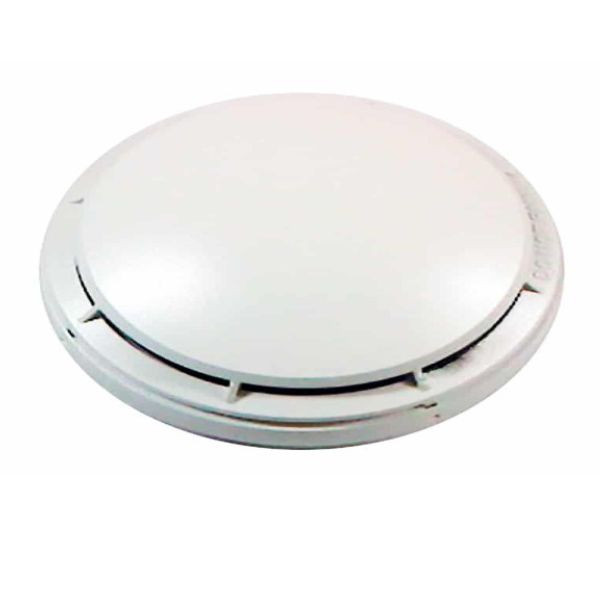

MOUNTING BASE - S-A4001/S-A4003

SHIELD Mounting Base which is a low insertion force base with stainless steel contacts for the detector terminals. XPERT Cards are supplied with all bases.

•           XPERT addressing

•           One way fit

•           Locking feature to prevent unauthorized removal

FEATURES

·        Responds well to slow-burning, smoldering fires.

·        Well suited for bedrooms and escape routes.

·        Unaffected by wind or atmospheric pressure.

·        Wide operating voltage.

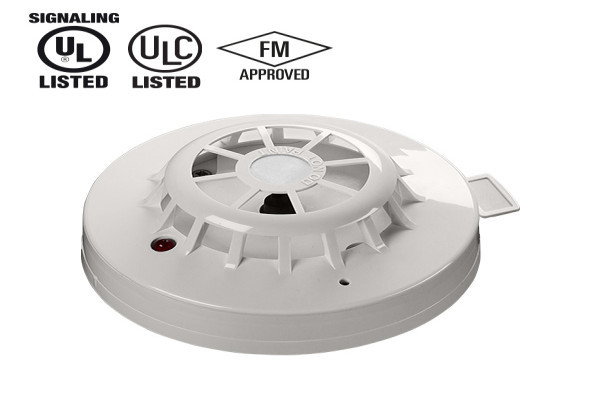

HEAT DETECTOR

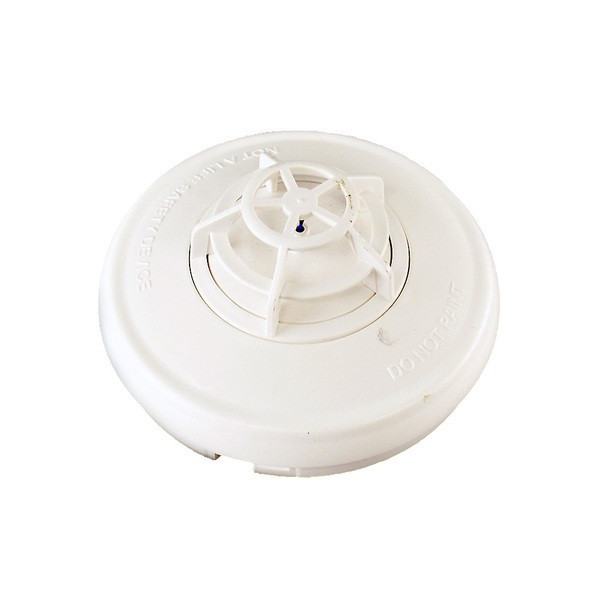

SHIELD Heat Detector is distinguishable by the low airflow resistant case and uses a single thermistor to sense the air temperature around the detector.

■ responds well to slow-burning, smoldering fires.

■ well suited for bedrooms and escape routes.

■ Unaffected by atmospheric pressure.

■ Ideal for environments that are dirty or smoky under normal conditions.

■ Well suited for warehouses, loading docks and parking garages.

■ Unaffected by wind or atmospheric pressure.

■ Remote test feature.

MOUNTING BASE - S-A4001/S-A4003

SHIELD Mounting Base which is a low insertion force base with stainless steel contacts for the detector terminals. XPERT Cards are supplied with all bases.

• XPERT addressing
•  One way fit
• Locking feature to prevent unauthorized removal

SMOKE DETECTOR

Smoke. Fire. Water damage. Each can quickly translate into danger. Danger to life. Damage to the building and its contents. Lost productivity. Lost revenue, Protection from these dangers requires a total commitment to building design and operation. The Simplex patented True Alarm fire detection systems have proven themselves as the early warning system of choice.

Engineered for superior performance in the most demanding of environments, the Simplex True Alarm Detection System from Simplex Fire Products is light years ahead of any other fire sensing solution available today. True Alarm’s intelligent sensing technology, manageability and flexibility are based on decades of experience and supported by seven individual U.S. patents. But True Alarm’s real value is proven where it counts – at customer sites. Since 1990, more than seven million True Alarm sensors have been installed worldwide, protecting people, property and peace of mind in hospitals, office buildings, universities, government institutions, industrial complexes, sports stadiums and a wide range of other world-class commercial facilities.

HEAT DETECTOR

Intelligent Thermal (Heat) Detector

Triga TR-HEAT-W Series intelligent thermal detectors are designed for both performance and aesthetics. A new modern, sleek, contemporary design and advanced thermal technologies make the TR-HEAT-W Series ideal for both system operation and building design.

The point ID address, set using rotary decimal switches, provide specific detector locations. The series includes a 135°F/57°C fixed temperature, rate-of-rise and a 190°F/88°C fixed high-temperature detectors. These thermal detectors provide effective, intelligent property protection in a variety of applications.

MODELS: TR-HEAT-W, TR-HEAT-IV, TR-HEAT-ROR-W, TR-HEAT-ROR-IV, TR-HEAT-HT-W and TR-HEAT-HT-IV

MULTI DETECTOR

SHIELD Multi sensor contains a photoelectric smoke sensor and a thermistor (temperature sensor) whose outputs are combined to give the final analog value.

·        Sensitive to a wide range of fires

·        Well suited for environments such as hotel bedrooms, warehouses & loading docks

·        Unaffected by wind or atmospheric pressure

MOUNTING BASE - S-A4001/S-A4003

SHIELD Mounting Base which is a low insertion force base with stainless steel contacts for the detector terminals. XPERT Cards are supplied with all bases.

• XPERT addressing
• One way fit
•  Locking feature to prevent unauthorized removal

BEAM DETECTOR

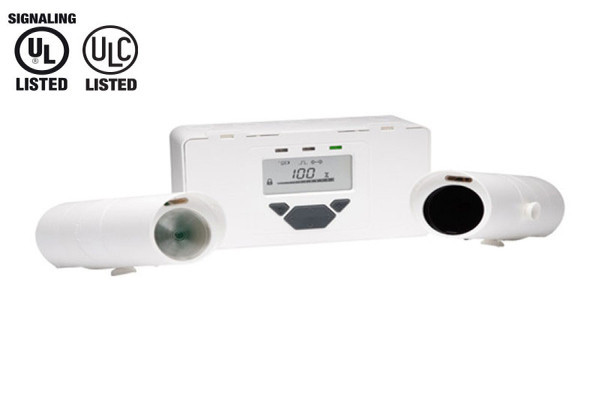

ALPHA 2000 END TO END BEAM DETECTOR

The SHIELD Alpha 2000 End to End infrared Optical Beam Smoke Detector (OBSD) has been designed using the latest optical technology, incorporating modern industrial, electronic and software techniques. This detector offers cost effective protection of large, open area spaces with high ceilings. It is also very suited to applications where access to ceiling mounted smoke detectors presents practical difficulties.

The SHIELD Alpha 2000 is ideal for applications where line of sight for the IR (infrared) detection path is narrow and where the building structure uses reflective surfaces. It has also been designed to be aesthetically pleasing and thus can equally suit modern architectural buildings as well as historical sites, particularly where ornate ceilings exist.

HEAT DETECTOR

Monitoring each sensor's average value provides a continuously shifting reference point. A software filtering process compensates for environmental factors, such as dust and dirt, and component aging, to provide an accurate reference for evaluating new activity. This filtering reduces the probability of false or nuisance alarms caused by shifts in sensitivity, either up or down.

Fires can be devastating in many cases, causing catastrophic loss of life and property. Nuisance alarms can be a time-wasting annoyance at best, and both costly and dangerous at worst. Simplex True Alarm sensors have the performance and versatility to deliver fast, accurate fire detection and virtually eliminate false alarms.

MANUAL CALL POINT

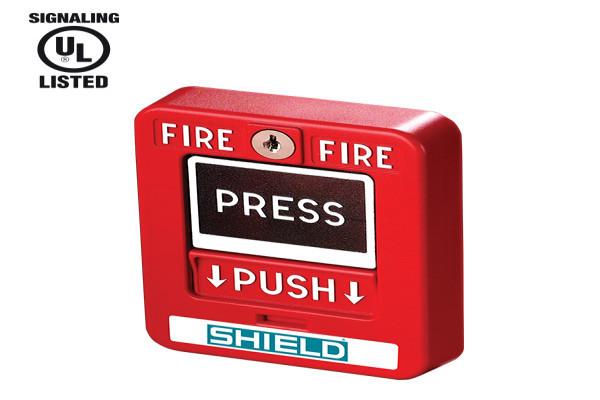

The Addressable Manual Pull Station is dual action and features translucent plastic at the center, allowing visibility of an internal LED that indicates alarm condition and polling status. The unit is addressable using a DIP switch protected within the pull station. The Manual Pull Station may be flush mounted on a single gang work box or use an optional back cover.

Fitted on Polycarbonate base (Model: S-A4062)

BATTERY OPERATED/OPTICAL SMOKE DETECTOR

Model: SBI-1010 or SH-762

The SBI-1010 Optical Smoke Alarm comes with 230V AC mains power supply and replaceable Alkaline battery back-up. It is best for detecting heat build-up from large flaming fires.

It is supplied with the Easi-Fit base to facilitate quick and simple installation, combined with simple detector head removal and replacement. The Easi-Fit base automatically connects both mains power and battery as the detector head slides on.

The SBI-1010 Optical Smoke Alarm may operate as a standalone alarm or may be interconnected to other alarm system.

The alarm is fitted with a Test / Hush button to facilitate frequent testing of the alarm and system. The silence function allows the alarm/ system to be silenced in the case of a false or nuisance alarm, e.g. cooking fumes.

The SBI-1010 Optical Smoke Alarm is fitted with a mains ‘power on’ green LED indicator and red LED indicator for false conditions.

The memory feature allows an alarm that has previously activated to be easily identified. This is useful if you have been away from the property at the time of the alarm event.

MULTI DETECTOR

Simplex Multi Detector operates with TrueSense Detection, a correlation of smoke activity and thermal activity providing intelligent fire detection earlier than with either activity alone.

·         Smoke activity accurately monitored by TrueAlarm photoelectric sensing technology

·         Thermal activity accurately monitored by TrueAlarm thermistor sensing technology

·         Functional and architecturally styled enclosures for ceiling or wall mounting

·         Smoke sensor louver design that directs air flow to chamber enhancing smoke capture

·         Built-in magnetic test feature compatible with standard bases (including relay control), sounder bases, and isolator bases

·         Chamber screen provides protection from dirt, dust, and insects

MANUAL CALL POINT

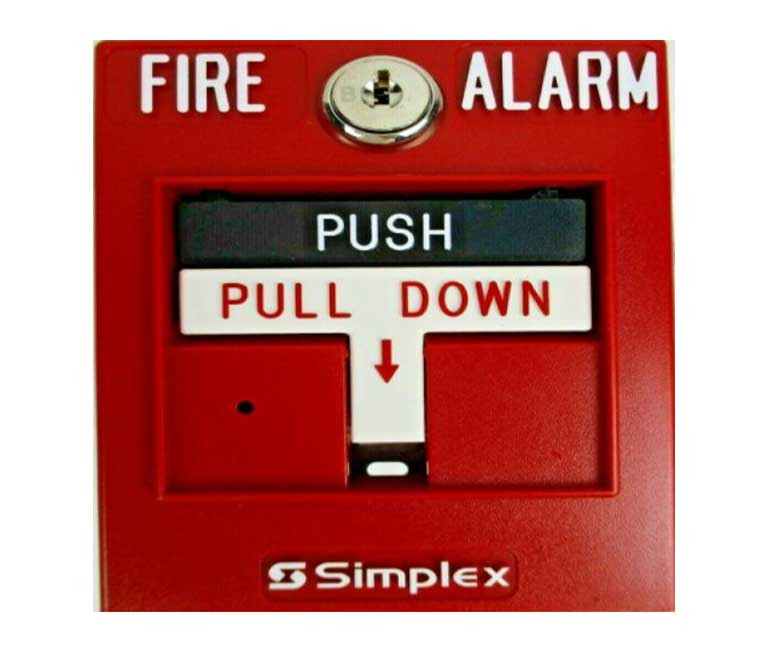

The Simplex 4099 Series addressable stations combine the familiar Simplex manual station housing with a compact communication module that is easily installed to satisfy demanding applications. Its integral individual addressable module (IAM) constantly monitors status and communicates changes to the connected control panel using Simplex IDNet communications wiring.

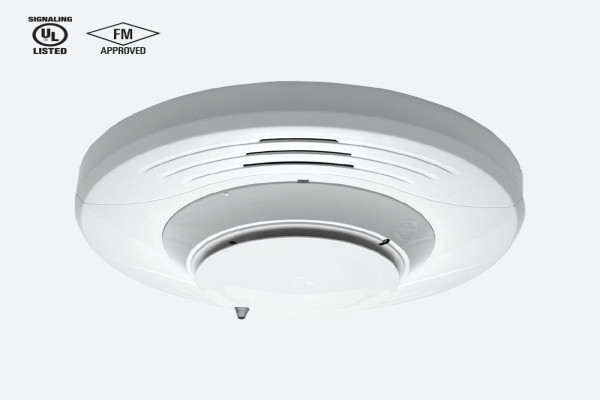

MULTI DETECTOR

Multi-Criteria Fire/CO Detector

GENERAL DESCRIPTION

TR-PHOTO-T-W - TRIGA /TR-FIRE-CO-W and TR-FIRE-CO-IV are plug-in addressable devices that provide both fire and carbon monoxide (CO) detection. The detector combines four separate sensing elements to sense multiple components of a fire: smoke, CO, light/flame, and heat. This approach enables enhanced sensitivity to real fire with heightened immunity to nuisance particulates. For CO, the detector’s electrochemical sensing cell creates a separate signal for life safety CO detection.

Multiple sensors and communication can greatly reduce nuisance alarms compared to single sensing methods. Sophisticated algorithms maximize the advantages of all four sensor types creating our best detection strategy offering heightened immunity to nuisance particulate and enhanced sensitivity to real fire.

·        Photoelectric sensors detect airborne particles associated with smoke.

·        Thermal sensors detect heat and rate-of-rise (135°F fixed temperature threshold).

·        Infrared sensors discern light patterns in the environment as an additional data point for alarm determination.

This ability to reject certain nuisance alarm triggers, such as theater smoke, supports the use of the fire/CO detector in applications where moderate to heavy nuisance conditions exist that might cause single sensing detectors to false alarm.

Meets UL 268 7th edition and UL 521 listing requirements for fire detection and UL 2075 standard for system-connected life safety carbon monoxide detection.

Released through the incomplete burning of various fuels, CO is a colorless, odorless and deadly gas that is virtually impossible to detect with the human senses. Because the
potential exists for dangerous levels of CO to accumulate in almost any building, legislation mandating the use of CO detection in commercial spaces continues to grow.

TR-B200S series intelligent sounder bases are recommended for use with TR-FIRE-CO-W and TR-FIRE-CO-IV. These bases can generate either a Temp 3 pattern for fire or a Temp 4 pattern for CO alarm indication. The TR-B200S series bases recognize the Triga synchronization protocol for use as a component of the general evacuation signal – along with other Triga Audible/Visible devices – when connected to a power supply or Fire Alarm Control Panel (FACP) output capable of generating the System Sensor synchronization pulses.

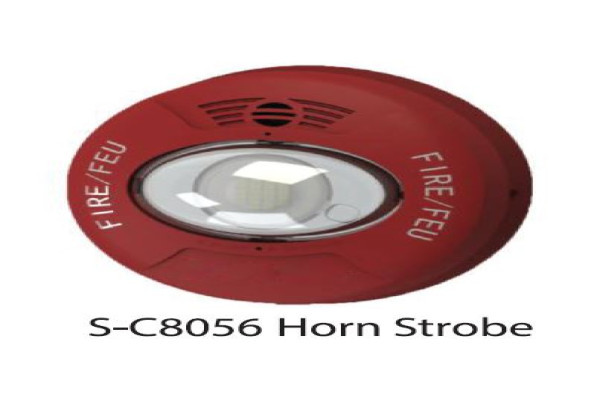

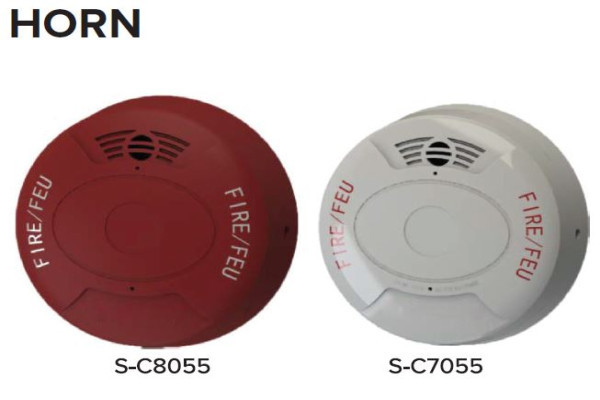

HORN WITH STROBE

The S-C8056 / S-C7056 Horn Strobes and S-C8057 / S-C7057 Strobes are a family of multi-candela visual and audible signal appliances with light sources generated from white LED, listed according to UL 1638 and UL 464 (10th Edition) for indoor use. The LED light source offers superior performance, including low power consumption and long operating life. Six levels of light output are selectable. Figure 1 shows relative light outputs in horizontal and vertical dispersion from strobes mounted on walls/ceilings.

The strobe appliances produce a flash rate of one flash per second over the Regulated Voltage Range. The temporal tone generated by the horn portion is designed as per ANSI and NFPA72 for standard emergency evacuation signaling requirement.

The appliance has the feature that can synchronize multiple horn and/or strobes in a complete fire alarm system

SOUNDER

The product must be used within its published specifications and properly installed, operated, and maintained, in accordance with these instructions. Users are solely responsible for determining whether a product is suitable for the user’s purposes or achieves the intended results. Read the instructions carefully before using this product. Failure to comply with any of the instructions, cautions, and warnings could result in improper application, installation and/or operation of these products in an emergency situation.

NOTE

Do not paint this device. Any material extrapolated from this document or from SHIELD’s instructions or other documents describing the product for use in promotional or advertising claims, or for any other use, including description of the product’s application, operation, installation, and testing is the sole responsibility of the user. SHIELD will not assume any liability for such use. In no case will SHIELD’s liability exceed the purchase price paid for a product.
