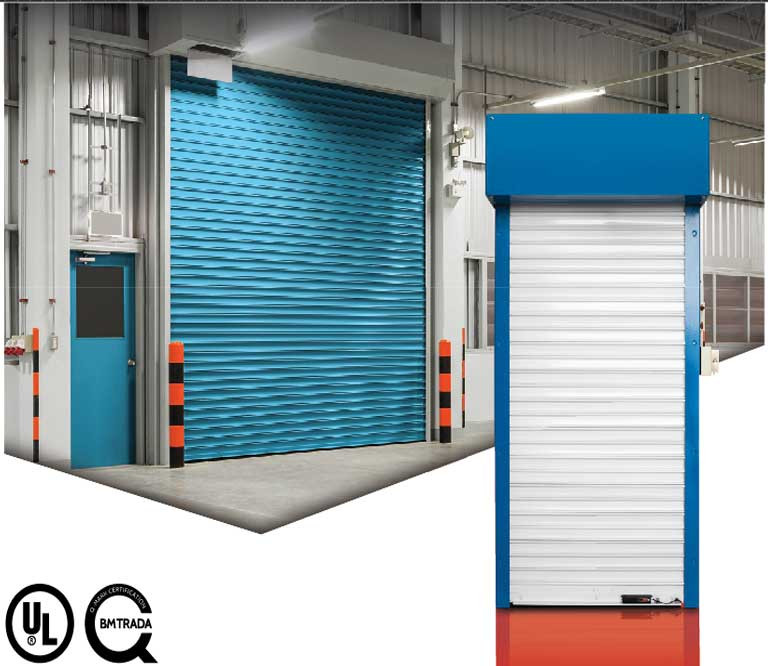

Rolling Shutter

Fire Rated Rolling Shutters are used to provide compartmentalization within a building and as such, help prevent a fire from rapidly spreading the required security and accessibility. This way, fire shutters allow people to evacuate safely and helps to make the work of the emergency services easier. Whilst conventional static barriers are permanently fixed in one place and non-operational (e.g. fire-walls, glass partitions, etc.), a fire shutter can actually be operated whenever required and will close automatically in the event of a fire.

PTEL is the leading supplier of rolling shutters and steel louvered doors. NAFFCO’s electrically operated shutters are unmatched in roller shutter door security. We supply all different types doors such as exterior louvered doors and commercial louvered doors. Large areas can be covered with just one shutter. Group controls and relays can operate multiple installations simultaneously. Fire ratings of up to 120 minutes (under UL listing) and 240 minutes (under BS listing) can be met.

AREAS OF APPLICATIONS:

• Industrial Facilities, Warehouses, Garages, Shopping Malls, Airports, Metros and Rail Terminals

KEY FEATURES

• Up to 240* Minutes Fire Integrity

• Tested to ANSI/UL 10B (or) BS 476 Part 22 Standard

• Sizes* up to 12 m (w) x 6.5 m (h) for 2 hours and 12 m (w) x 4.6 m (h) for 4 hours

• Electrically Operated with Emergency Manual Override Chain

• With End lock and optional Wind Lock Feature

• Superior Galvanized Steel Slats

• Option of Single / Double Skin

• Incorporates Heavy Duty Guide Channels

• Fusible Link / Fire Alarm Signal / Heat (or) Smoke Detector Activation / Delay Timer

• Fire alarm signal conversion panel with battery back up

• 3-way Push Button Control

• Finished Powder Coating at factory to match desired RAL color scheme

• Option of larger sizes with special assessment
