FEATURES

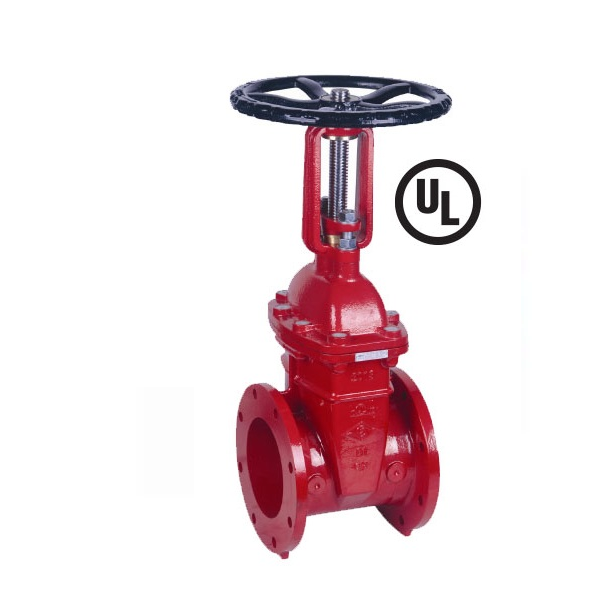

MODEL: SD-OSY175GV

·        Outside screw and yoke

·        Iron body. Bronze mounted. Solid wedge

·        Flanged ends to ANSI B16.1 Class 125

·        Working pressure: 175 psi (non-shock cold water pressure)

·        Conform to MSS SP-70

·        Pre grooved stem for supervisory switch

MODEL: SD-OSY200FF-D, SD-OSY250FF-D, SD-OSY300FF-D

·        Working pressure: 200 psi, 250 psi, 300 psi

·        Connection ends: Flange to ANSI B16.1 Class 125

·        Temperature range: 0ºC to 80ºC

·        Coating: Fusion bonded epoxy coating internally and externally in accordance with ANSI/AWWA C550

MODEL: SD-OSY250GV-D

·        Valve complies with AWWA C515

·        Working Pressure 250 psi. (Cold water pressure Max. temp. 63ºC)

·        Flanged Ends to ANSI B16.1 Class 125

·        Pre-grooved stem for supervisory switch

·        Epoxy coated interior / exterior to AWWA C550

MODEL: SD-OSY175FF-D1

·        Connection Ends: Flange to ANSI B16.1 CL 125

·        Working Pressure 175 psi available upon request.

·        Temperature Range: 0°C – 100°C

·        Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
